Orien™ Guiding Catheter
Orien™
Orien™ Guiding Catheter Details
Product Features

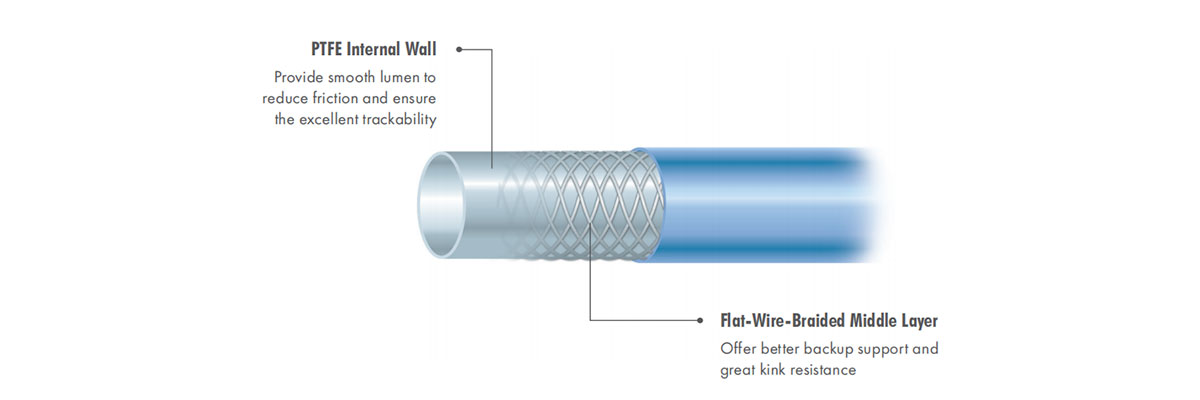

• Flat wire braided middle layer offers outstanding flexibility and excellent kink resistance.
• Robust secondary curve provides great backup support and curve retention.
• Soft and flexible tip minimize the damage to the vessel wall.
• PTFE internal wall provides smooth lumen to ensure the excellent trackability.
• Large lumen guarantees the good performance for kissing balloon.
Product Benefits
• Outstanding trackability
• Excellent kink resistance
• Minimized damage to vessel wall
• Great backup support
Product Description
Product Ranges
• Catheter O.D.: 5F / 6F / 7F
• Catheter length: 100cm
Curve type
• Left coronary curves
Judkins Left
Amplatz Left
Extra Backup
• Right coronary curves:
Judkins Right
Amplatz Right
Ordering Information
| Right Coronary Curves | ||||||
| Curve Type | Catalogue No. | Distal End Shape | Catheter O.D. | Catheter I.D. | Length (cm) | |
| Judkins Right | CL5JR35 | JR 3.5 | 5F | 0.056” | 100 |  |
| CL5JR40 | JR 4.0 | |||||
| CL6JR35 | JR 3.5 | 6F | 0.070” | |||
| CL6JR40 | JR 4.0 | |||||
| CL7JR35 | JR 3.5 | 7F | 0.078” | |||
| CL7JR40 | JR 4.0 | |||||
| Amplatz Right | CL5AR10 | AR 1.0 | 5F | 0.056” | 100 |  |
| CL5AR20 | AR 2.0 | |||||
| CL6AR10 | AR 1.0 | 6F | 0.070” | |||
| CL6AR20 | AR 2.0 | |||||
| CL7AR10 | AR 1.0 | 7F | 0.078” | |||
| CL7AR20 | AR 2.0 | |||||
| Left Coronary Curves | ||||||
| Curve Type | Catalogue No. | Distal End Shape | Catheter O.D. | Catheter I.D. | Length (cm) | |
| Judkins Left | CL5JL35 | JL 3.5 | 5F | 0.056” | 100 |  |
| CL5JL40 | JL 4.0 | |||||
| CL5JL45* | JL 4.5 | |||||
| CL5JL50* | JL 5.0 | |||||
| CL6JL35 | JL 3.5 | 5F | 0.056” | |||
| CL6JL40 | JL 4.0 | |||||
| CL6JL45* | JL 4.5 | |||||
| CL6JL50* | JL 5.0 | |||||
| CL7JL35 | JL 3.5 | 5F | 0.056” | |||
| CL7JL40 | JL 4.0 | |||||
| CL7JL45* | JL 4.5 | |||||
| CL7JL50* | JL 5.0 | |||||
| Amplatz Left | CL5AL075 | AL 0.75 | 5F | 0.056” | 100 |  |
| CL5AL10 | AL 1.0 | |||||
| CL5AL20 | AL 2.0 | |||||
| CL6AL075 | AL 0.75 | 6F | 0.070” | |||
| CL6AL10 | AL 1.0 | |||||
| CL6AL20 | AL 2.0 | |||||
| CL7AL075 | AL 0.75 | 7F | 0.078” | |||
| CL7AL10 | AL 1.0 | |||||
| CL7AL20 | AL 2.0 | |||||
| Extra Backup | CL5XB30 | XB 3.0 | 5F | 0.056” | 100 |   |
| CL5XB35 | XB 3.5 | |||||
| CL5XB40 | XB 4.0 | |||||
| CL6XB30 | XB 3.0 | 6F | 0.070” | |||
| CL6XB35 | XB 3.5 | |||||
| CL6XB40 | XB 4.0 | |||||
| CL6XBC35 | XBC 3.5 | |||||
| CL6XBLAD35 | XBLAD 3.5 | |||||
| CL7XB30 | XB 3.0 | 7F | 0.078” | |||
| CL7XB35 | XB 3.5 | |||||
| CL7XB40 | XB 4.0 | |||||
| CL7XBLAD35 | XBLAD 3.5 | |||||
